Accessories

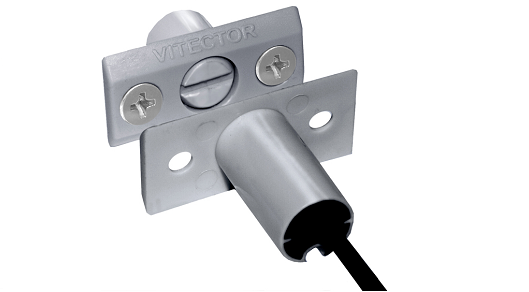

ENS-S 1000

VITECTOR Accessories ENS-S 1000 Available 0
General Data
Operating condition - door open0 V (contact open)
Operating condition - door closed24 V (contact closed)
Operating condition - internal fault9 V
Safety Propertiesnone
Protection levelIP 68
Operating temperature-20°C to +75°C
Voltage range24 V AC/DC
Contact Load Capacitymax. 3.6 VA
Max. current150 mA
Max. switching distance4 mm
Installation diameter13,5 mm
Fitting depth15 mm (magnet), 25 mm (switch)
Faceplate size18.5 x 37.5 x 3 mm (H x W x D)
MountingEach part 2 x M4 flat head screw
Cable length5 m
Housing colourGrey

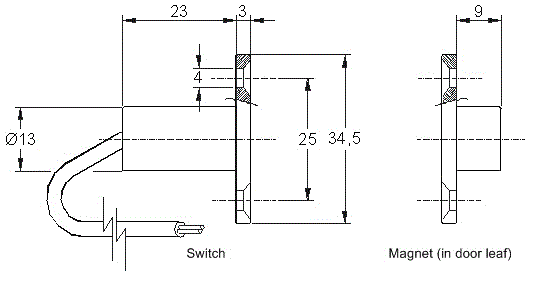

All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
