Accessories

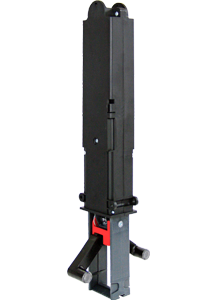

OGD-S 2000
VITECTOR Accessories OGD-S 2000 Available 0
| General Data | |
| Interface | FRABA OSE |
| Technical Data | |
| Range | 1.5 m - 7 m |
| Protection Class (DIN EN 60529) | IP65 |
| Safety Output | FRABA OSE safety signal |
| Start/Restart Interlock | None |
| Operating Temperature | -10 ... +55 °C (+14 ... +131 °F) |
| Operating Voltage | 5 V - 24 V DC |
| Power Consumption | 60 mA max. |
| Maximum Permissable Cable Length | 30 m (between sensor and PELV supply) |
| Operating Humdity | 15…95% |
| Touch Down Speed | max. 15cm/s |
| Number of Beams | 2 |
| Mechanical Data | |
| Potting Material | Polyurethane |
| Housing Dimensions | 40x260x60 mm [1.57x10.24x2.36"] |
| Housing Material | PA 6 GF 30 |

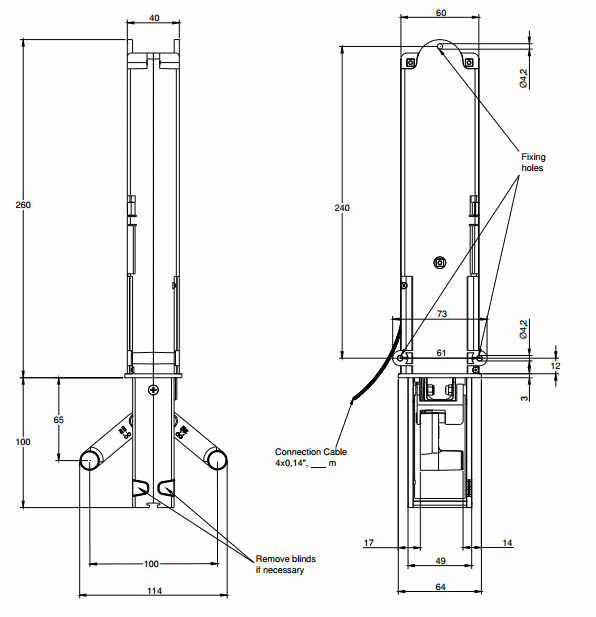

All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
