Rubber Profile
OSE-P 20 40 00
VITECTOR
Measuring Tools & Sensors
40 mm (1.57"), T Foot Tear-off, None, 20 mm (0.79"), , 15.5 mm / 19.5 mm (tear-off foot), EPDM
Available
0
General Data Height 40 mm (1.57") Foot T Foot Tear-off Sealing Lip None Width 20 mm (0.79") Foot Width 15.5 mm / 19.5 mm (tear-off foot) Material EPDM Applicable Bumper OSE-B 3518 Hardness 70 ± 5 Shore A Operation Temperature +5 °C to +55 °C (41 °F to 131 °F) Weight 0.3 kg/m Roll Length 30 m (98.5 ft) Unit of Measure Meter Product Life Cycle Established
Compatible Bumpers Product Height Width OSE-B 3518 35 mm (1 1/3 '') 18 mm (0.71")
Compatible Retainers Product Width Inside Width Outside ALU-2007 17 mm (0.67") 20 mm (0.79")

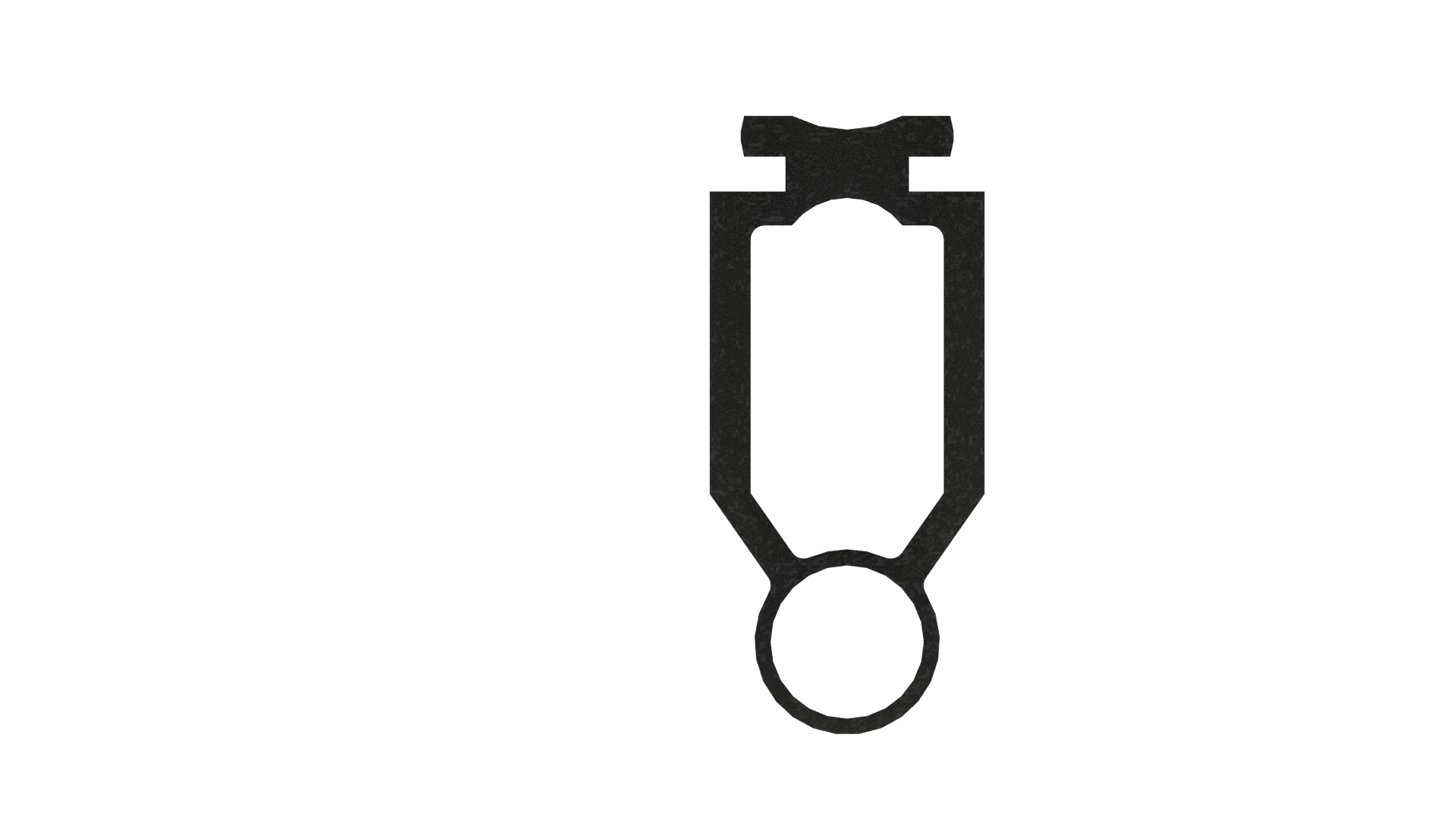

All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
