Rubber Profile
OSE-P 25 30 00
VITECTOR
Measuring Tools & Sensors
30 mm (1.18"), T Foot Tear-off, None, 25 mm (0.98"), , 15.8 mm / 20 mm (tear-off foot), EPDM
Available
0
General Data Height 30 mm (1.18") Foot T Foot Tear-off Sealing Lip None Width 25 mm (0.98") Foot Width 15.8 mm / 20 mm (tear-off foot) Material EPDM Applicable Bumper OSE-B 3518 Finger Detection Yes Hardness 70 ± 5 Shore A Operation Temperature +5 °C to +55 °C (41 °F to 131 °F) Weight 0.3 kg/m Dead Surface Region 80 mm Roll Length 50 m (164 ft) Unit of Measure Meter Product Life Cycle Established
Compatible Bumpers Product Height Width OSE-B 3518 35 mm (1 1/3 '') 18 mm (0.71")
Compatible Retainers Product Width Inside Width Outside ALU-2509 22 mm (0.87") 25 mm (0.98")

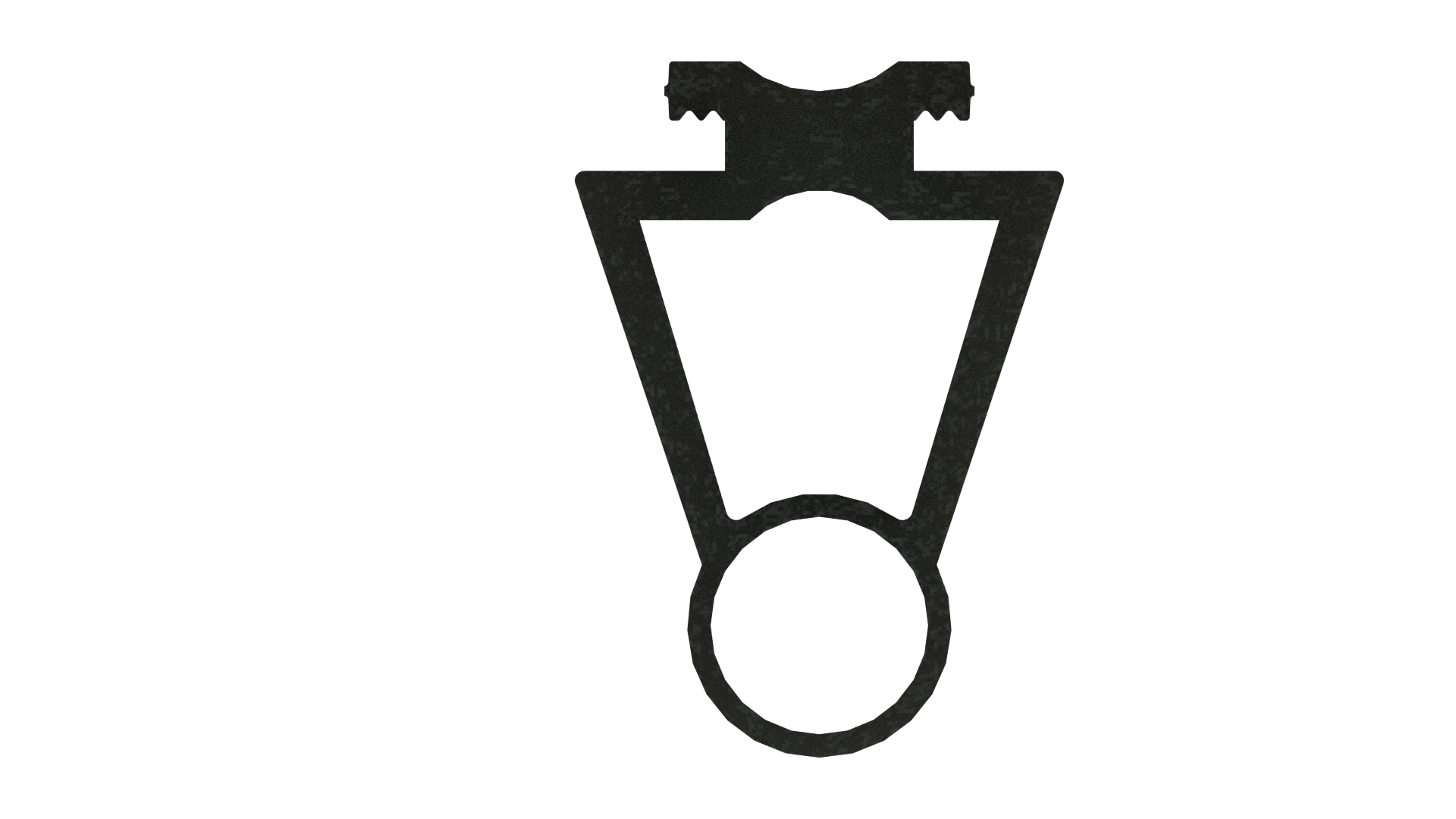

All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
